Description

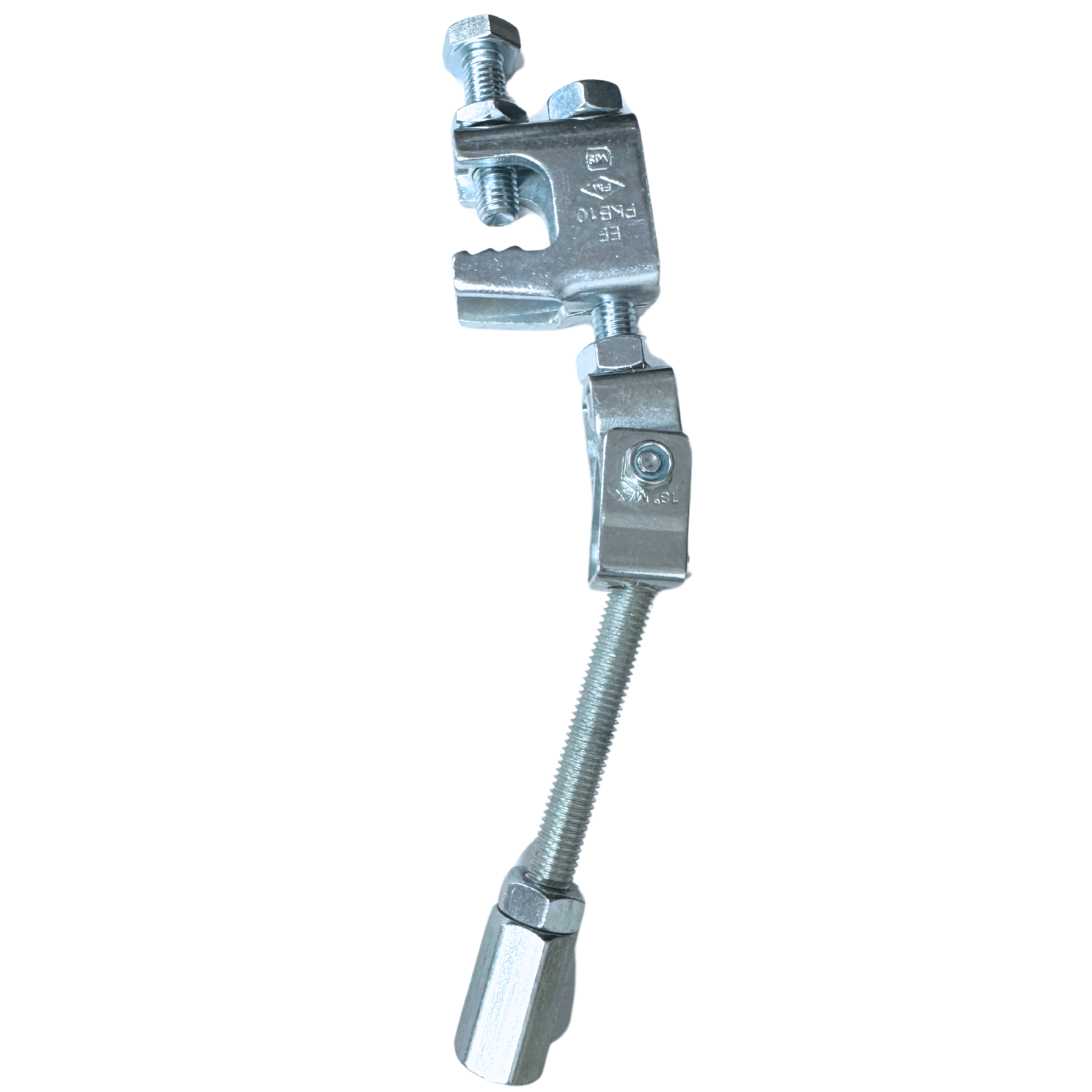

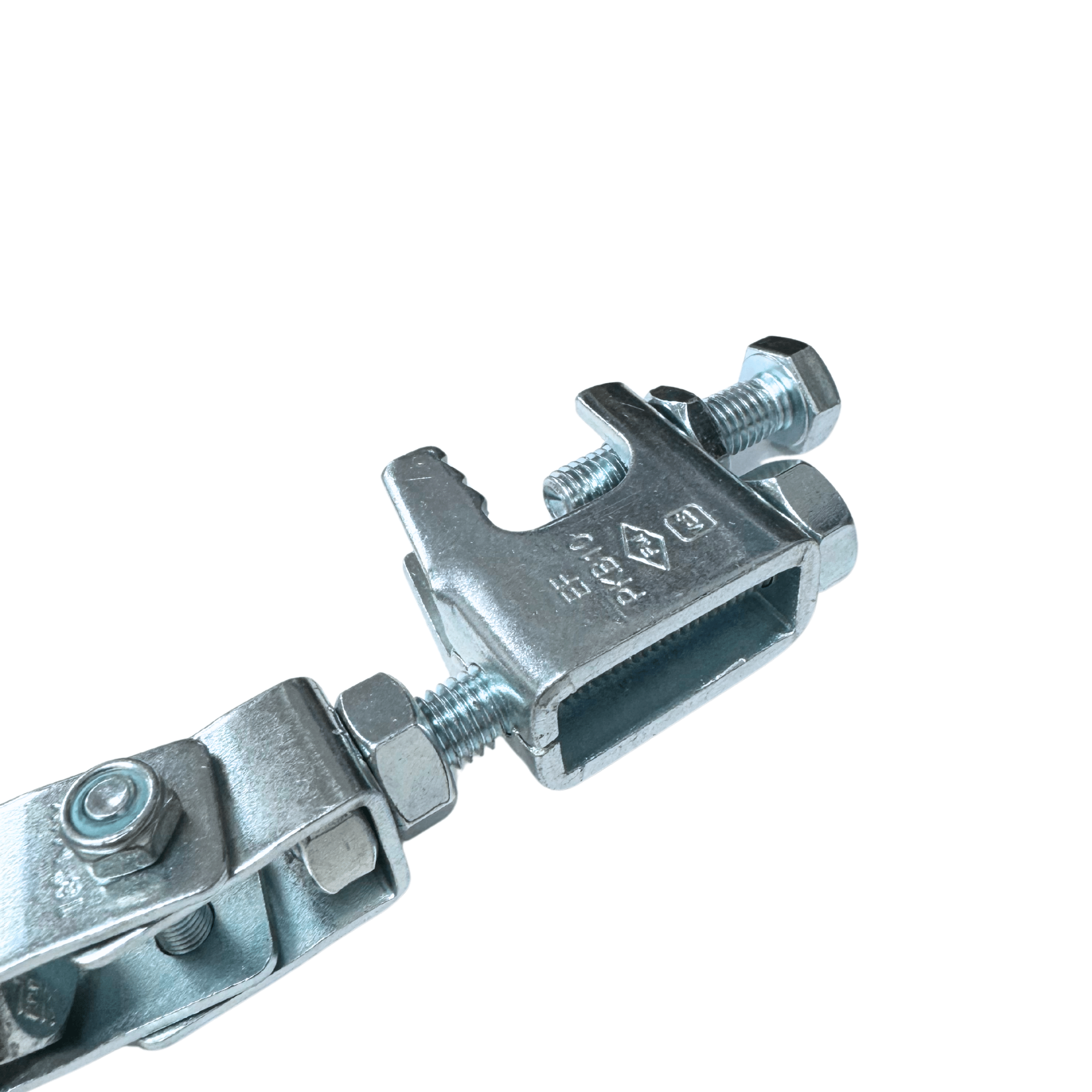

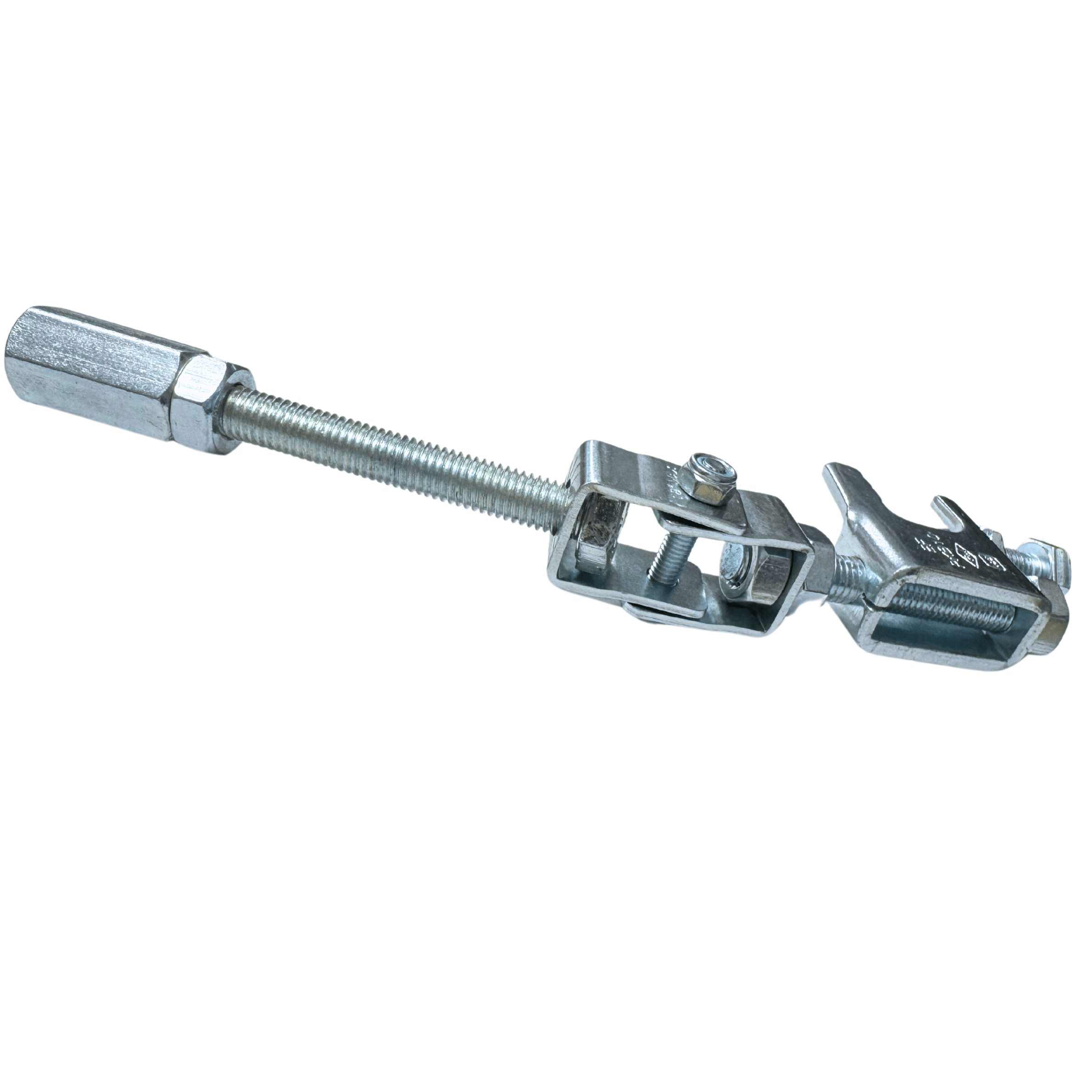

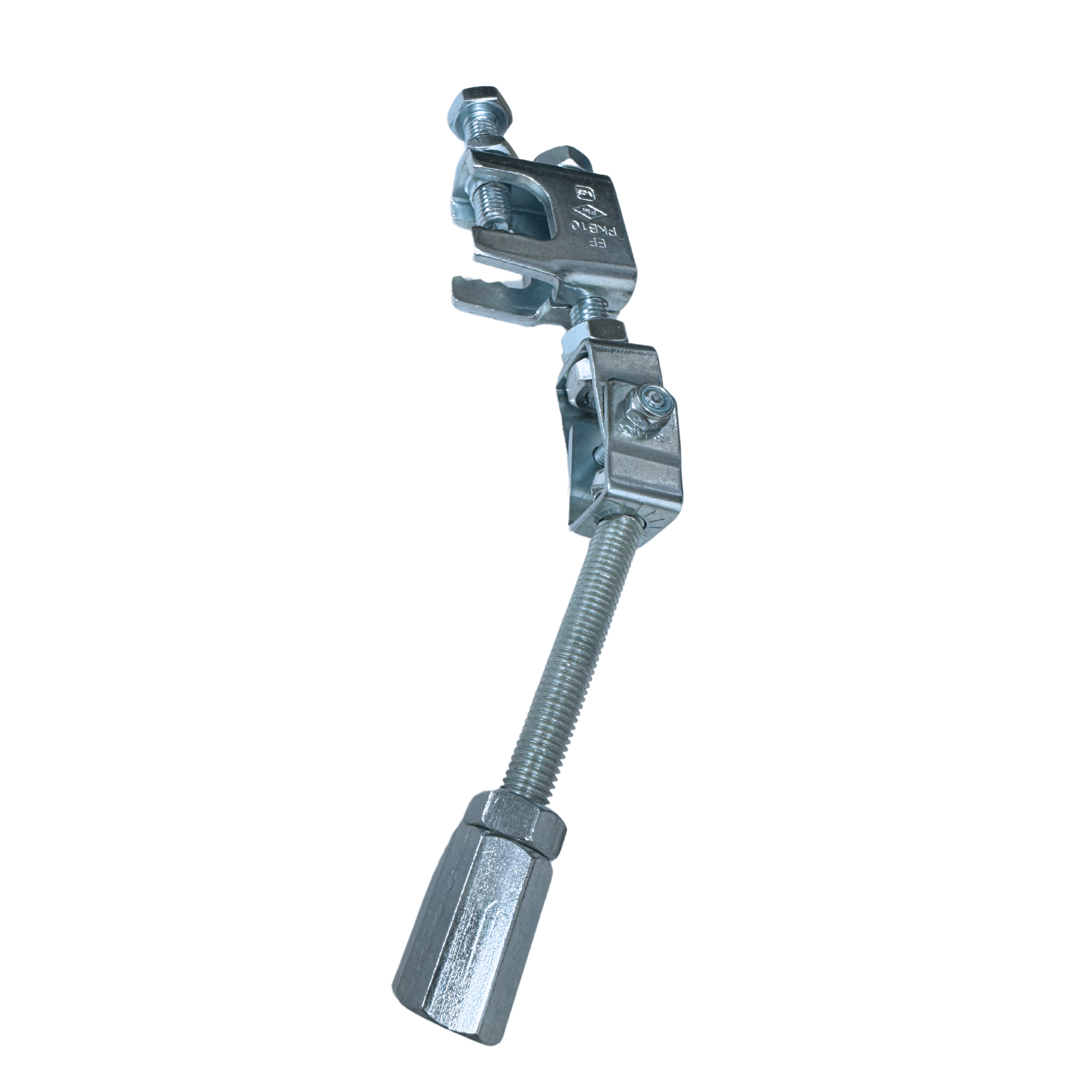

Set – Flange Clamp, Hex Nut, Rod Connector, Swivel Attachment & Stud Bolt Zinc Plated

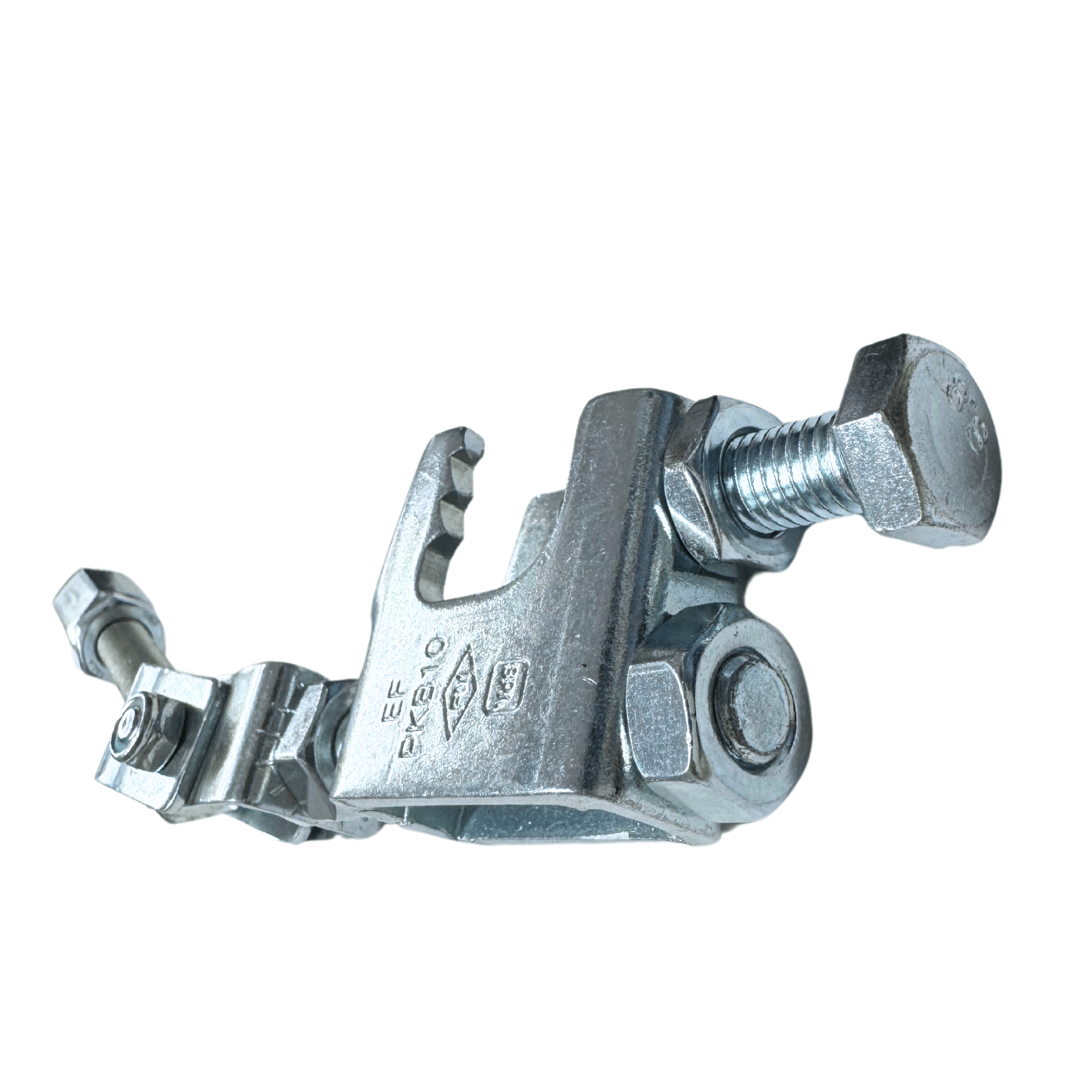

Flange Clamp:

• FM, VdS and UL approved product, therefore certified for use in sprinkler systems and cable management
• Manufactured to DIN 1684 GTA/17
• Tightening set screw – 11Nm, Torque lock nut – 22Nm
• BTS product code: TKN10, Lindapter equivalent FLM10

M10 Cut Stud:

• M10 x 80mm Threaded Stud Bolt
• Metric Course Thread 1.5mm Pitch
• Grade 4.8 Mild Steel

M10 Threaded Rod Connector:

• M10 x 30mm Length
• 17mm A/F

Sold as a set ( 1 x M10 Flange Clamp, 1 x M10 x 80mm Stud Bolt, 1 x Rod Connector, 1 x M10 Swivel Attachment & 1 x M10 Hex Nut),
