Description

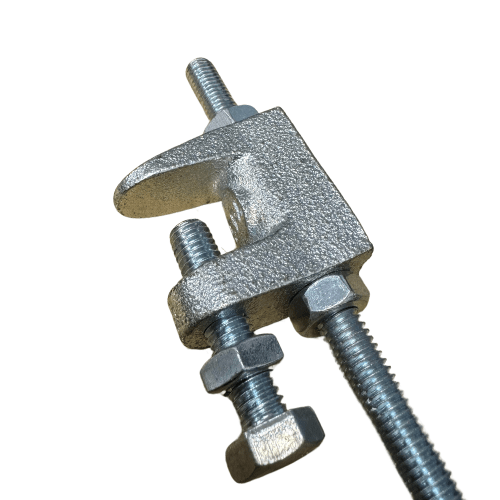

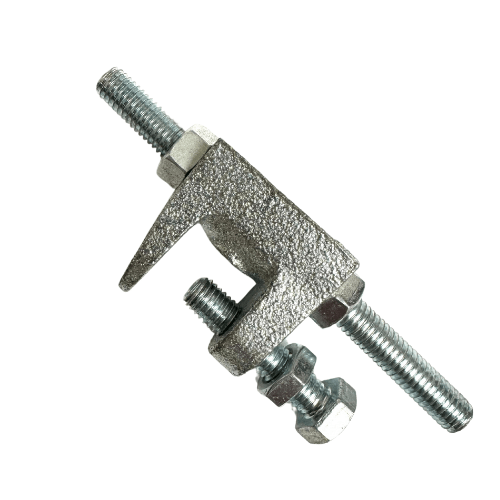

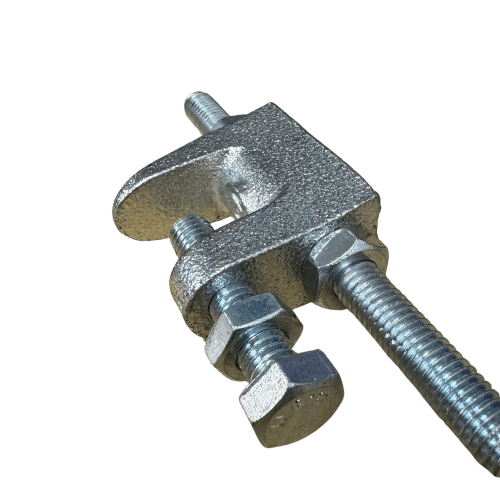

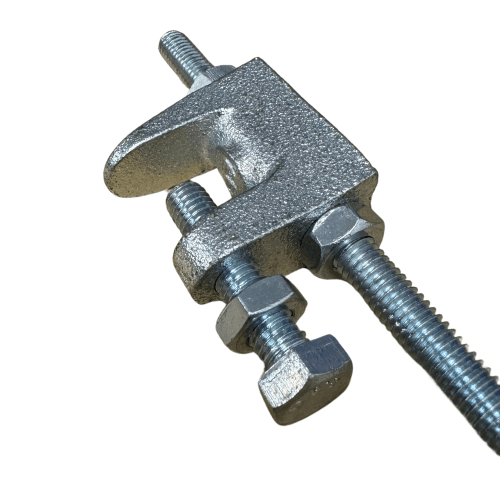

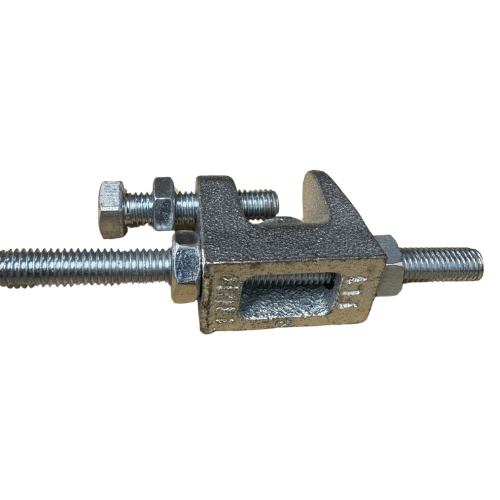

M6 BTS Flange Clamp – German-Made Beam Clamp for Threaded Rod (BZP)
The M6 BTS flange clamp is a premium-quality beam clamp manufactured in Germany to the highest standards. Designed to suspend threaded rod systems from structural steel beams, this clamp offers easy installation and superior performance across electrical, mechanical, and fire protection systems.
Its through-hole design allows for post-installation height adjustments and accepts both metric and inch threaded rods. This removes the need for separate inventory and simplifies installation on-site.
🔧 Product Specifications:
- Material: Cast iron, Zinc plated (6–8 microns)
- Thread Size: M6
- Back Hole: 7mm (Unthreaded)
- Clamping Thickness: 5–18mm
- Load Rating: 110kg
- Set Screw: Grade 8.8, Tightening torque: 8 Nm
- Lock Nut: Torque: 11 Nm
- Certifications: FM, VdS, UL approved
- Standards: DIN 1684 GTA/17
- Equivalent: Lindapter FLM6
✔ Key Features:
- German-made for maximum reliability and quality assurance
- Compatible with M6 threaded rod – metric and inch sizes
- 7mm unthreaded back hole for simplified rod positioning
- Bright Zinc Plated (BZP) finish – corrosion and wear resistant
- Used in cable management, HVAC, and sprinkler installations
🛠 Typical Applications:
- Suspending cable containment systems from steel beams
- Installing sprinkler and fire protection pipework
- HVAC duct and support system installations
- Mechanical containment and M&E infrastructure
📦Ordering & Delivery
✔ Trusted UK Delivery – 95% of orders dispatched within 24 hours
Most orders arrive within 1–2 working days as standard.
Note: Heavy or bulk orders, as well as special cut lengths or non-standard products, may take slightly longer to dispatch.
For bulk quantities or trade pricing, please call our team on 0121 270 8507.
